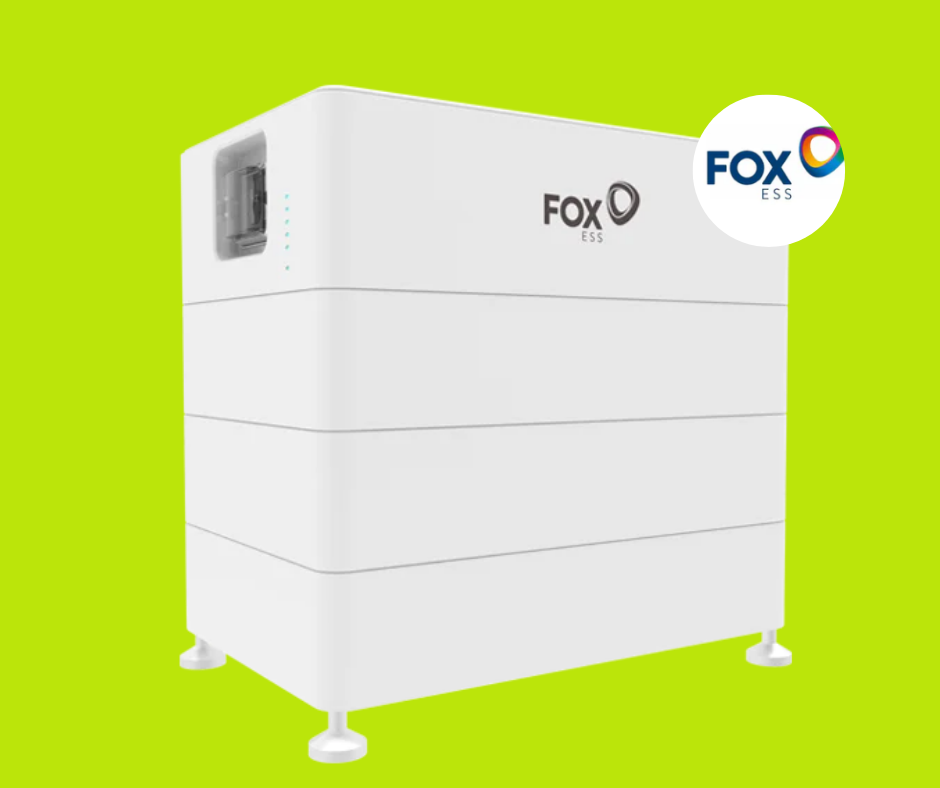

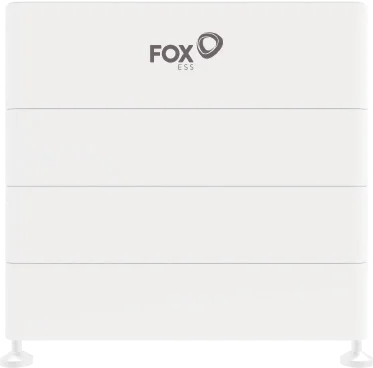

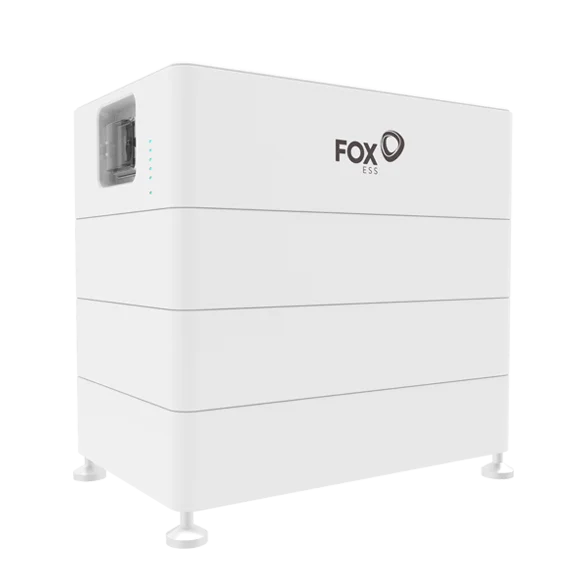

Fox ESS ECS4800-H4 High Voltage Storage Battery – Powerful and Scalable for Large Residential and Commercial Systems
The Fox ESS ECS4800-H4 delivers 18,640 Wh of energy capacity at 179.2V. Engineered with LiFePO4 technology, this module combines durability with efficiency, making it suitable for larger installations that require substantial energy storage.
Key Features:
- Large Capacity: 18,640 Wh with high round-trip efficiency
- Longevity: Rated for over 6,000 cycles
- Modular Design: Scalable up to 7 modules for extensive storage
- Outdoor Compatibility: IP65-rated for versatile installations
The Fox ESS ECS4800-H4 provides high energy storage capacity and is ideal for applications requiring reliable power over a long cycle life.

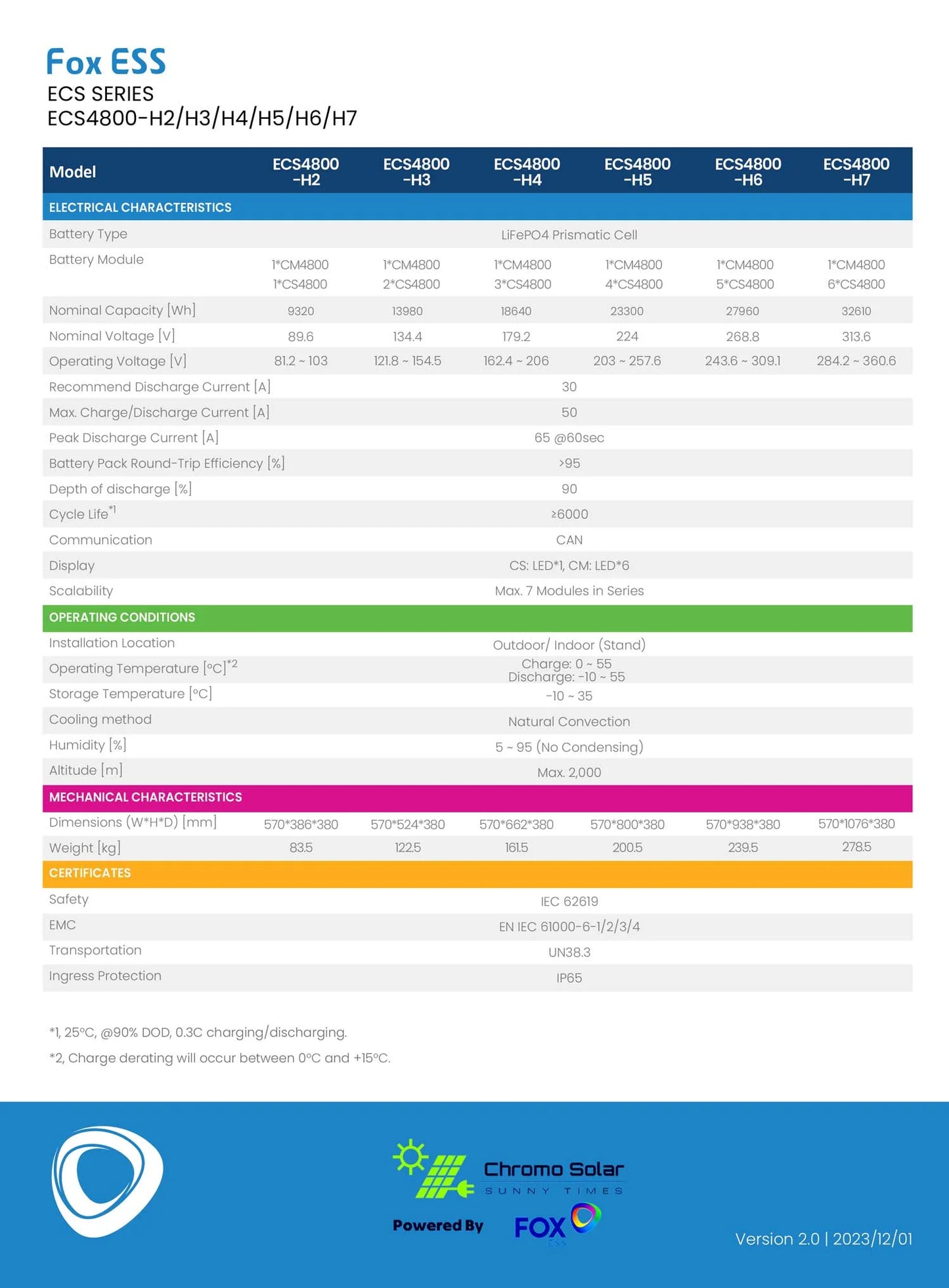

ECS4800-H4 HV 18.6kW High Voltage Storage Battery
Battery Module | 1*CM4800 + 3*CS4800 |
Nominal Capacity | 18.64 [kWh] |
Nominal Voltage | 179.2 [V] |
Operating Voltage | 162.4 ~ 206 [V] |
Recommended Discharge Current | 30 [A] |
Max. Charge/Discharge Current | 50 [A] |
Dimensions (W*H*D) | 570 * 662 * 380 [mm] |
Weight | 161.5 [kg] |
